E-Timer Specifications
Typical Performance
Operating Voltage: 6, 8, 10 or 12 VDC
Operating Current, average: 0.3A Idle, 0.5A 1500RPM
Ignition Timing Accuracy: +/- 1 degree
Maximum RPM: 4000
Ignition Coil Inductance: 3mH
Operating Temperature: -25C to +125C

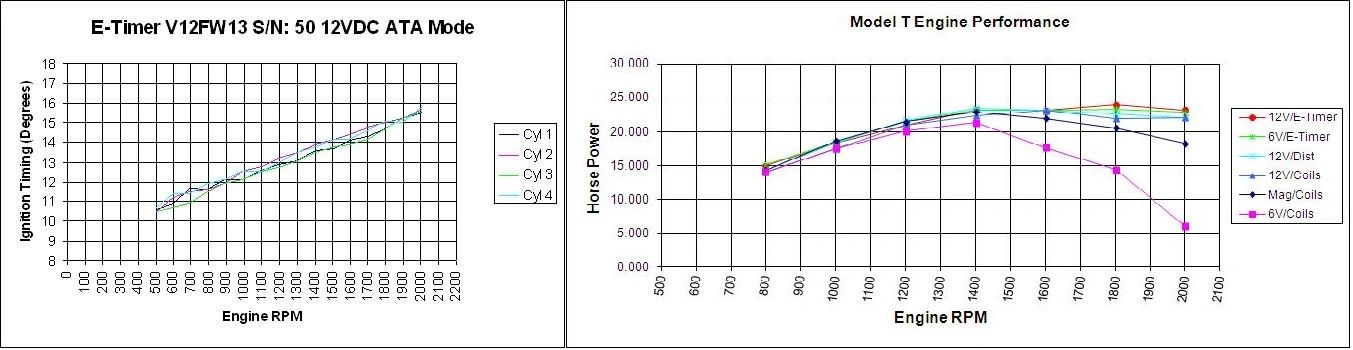

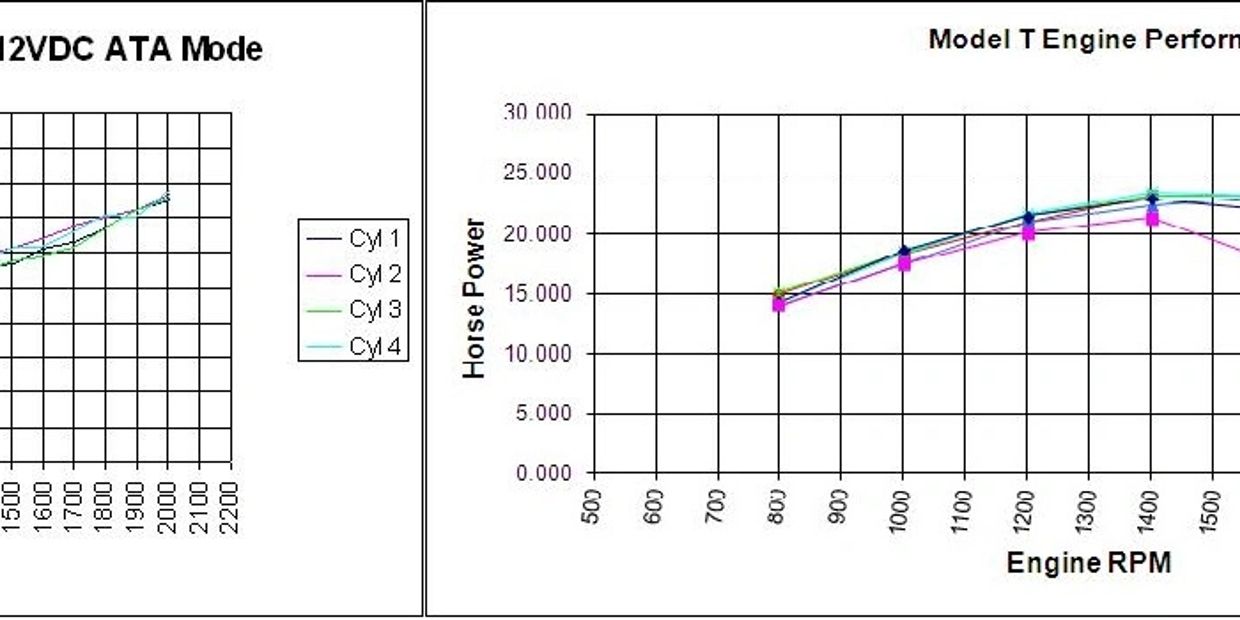

Automatic Timing Advance Range
12V Operation
12V Operation
12V Operation
Timing Advance range is greater operating on 12V because the coil charges faster so it can fire faster
6V Operation
12V Operation
12V Operation
Timing Advance range is less operating on 6V because the coil takes almost twice as long to charge
